Combination Microwave & Vent Hood Comparison Chart

Compare Whirlpool® Combination Microwave & Vent Hoods and learn about their top features, dimensions and more to find the right microwave for your kitchen.

swipe
Filters

In Stock

Product Specifications

Capacity (Cubic Feet)

Type

Dimensions

Flush Built-In Design1

Ventilation Capabilities

Power

Air Fry w/ Basket

Grill Mode

Sensor Cooking

Steam Cooking

Convection

Cleaning Type

Display Type

Door Release

Included Accessories

Turntable-Free Design

Turntable On/Off Option

Cooktop Lighting

90 Degree Hinge

No products match your filter selections.

Model WMH31017HZ

Model WMH32519HB

Model WMH53521HW

Model WML35011KS

Model WML55011HB

Model WML75011HV

Model UMH50008HS

Model WMH78519LB

1.7

Over-the-Range

17-1/8" H x 29-15/16" W x 15-9/16" D

-

2-Speed Fan, 300 CFM Motor Class

1000 Watts

-

-

-

-

-

-

Blue LED

Handle

-

-

-

Adjustable Incandescent Cooktop Lighting

Yes

1.9

Over-the-Range

17-1/8" H x 29-7/8" W x 15-9/16" D

-

3-Speed Fan, 300 CFM Motor Class

1000 Watts

-

-

Yes

Yes

-

CleanRelease® Non-Stick Interior

Blue LCD

Handle

Cooking Rack

-

Yes

Adjustable Incandescent Cooktop Lighting

Yes

2.1

Over-the-Range

17-1/8" H x 29-15/16" W x 16" D

-

4-Speed Fan, 400 CFM Motor Class with Auto Adapt Fan

1000 Watts

-

-

Yes

Yes

-

CleanRelease® Non-Stick Interior

Blue LCD

Handle

Cooking Rack

-

Yes

Adjustable Incandescent Cooktop Lighting

Yes

1.1

Low Profile

10-5/16" H x 30" W x 18-7/16" D

-

2-Speed Fan, 360 CFM Motor Class

1000 Watts

-

-

-

-

-

-

Blue LED

Push Button

-

-

-

Adjustable LED Cooktop Lighting

Yes

1.1

Low Profile

10-5/16" H x 29-7/8" W x 18" D

-

3-Speed Fan, 400 CFM Motor Class

1000 Watts

-

-

-

-

-

-

White LCD with Concealed Touch Controls

Tap-To-Open Door

-

-

Yes

Adjustable Halogen Cooktop Lighting

Yes

1.1

Flush Over-the-Range

17-7/8" H x 30" W x 12-3/4" D

Yes

3-Speed Fan, 300 CFM Motor Class and Hidden Venting

1000 Watts

-

-

Yes

-

-

Steam Clean, CleanRelease® Non-Stick Interior

White LCD with Concealed Touch Controls

Tap-To-Open Door

-

Yes

-

Adjustable LED Cooktop Lighting

Yes

1.1

Low Profile

10-5/16" H x 29-7/8" W x 18" D

-

4-Speed Fan, 400 CFM Motor Class

1000 Watts

-

-

Yes

Yes

-

CleanRelease® Non-Stick Interior

White LCD with Concealed Touch Controls

Tap-To-Open Door

-

-

Yes

Adjustable LED Cooktop Lighting

Yes

0.8

Built-In

20-7/16" H x 23-9/16 W x 12-5/8" D

-

3-Speed Fan, 330 CFM Motor Class

750 Watts

-

-

-

-

-

Stainless Steel Interior

White LED

Push Button

-

-

-

Halogen Cooktop Lighting

Yes

1.9

Over-the-Range

17-1/8" H x 29-15/16" x 16-9/16" D

-

6-Speed Fan, 400 CFM Motor Class

1200 Watts/1600 Watts (with Convection)

Yes

Yes

Yes

Yes

Yes

Steam Clean, CleanRelease® Non-Stick Interior

White LCD Touchscreen with Backlit Menu

Pocket

Convection Rack, Cooking Rack

-

Yes

Adjustable Incandescent Cooktop Lighting

Yes

1. When installed in standard cabinet depth 12-3/4".

Type

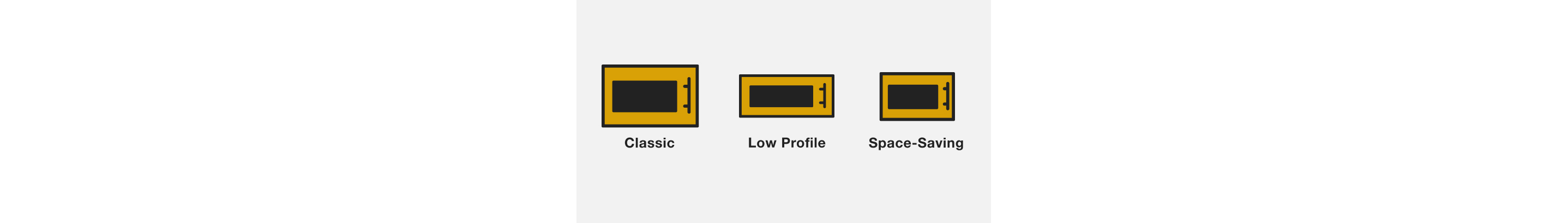

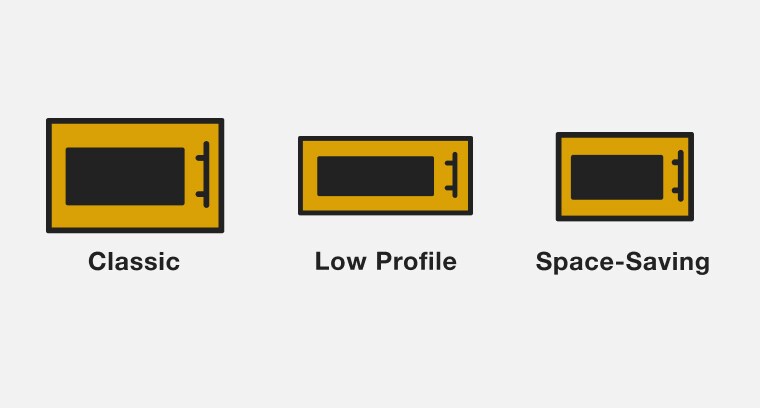

A line drawing of three microwaves side by side, labeled with Classic, Low Profile and Space-Saving

Common over-the-range microwave types include: classic, which are installed between cabinets above a range and include select models with a depth that is flush* with standard cabinet depth; low profile, which fit like a range hood** in spaces with lower cabinetry; and space-saving, which are compact to fit in smaller spaces.

*When installed in standard cabinet depth 12-3/4". **Based on 24" minimum install for under-cabinet hoods and Low Profile Microwave Hood Combination.

Dimensions

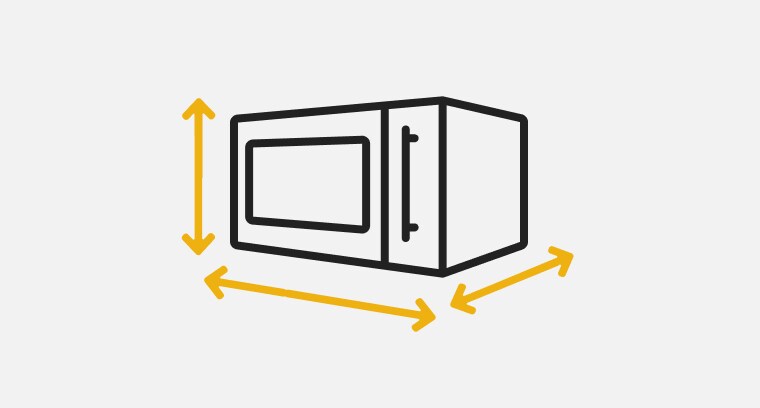

A line drawing of a microwave with arrows indicating height, width and depth

To properly install an over-the-range microwave, it’s important to know the right dimensions for your kitchen. Most Whirlpool® Over-the-Range Microwaves range between 24–30 inches in width, 10–20 inches in height and 12–19 inches in depth.

Flush Built-In Design

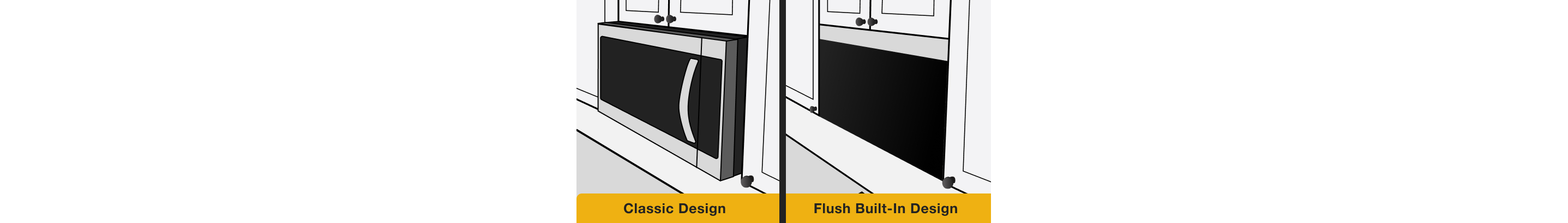

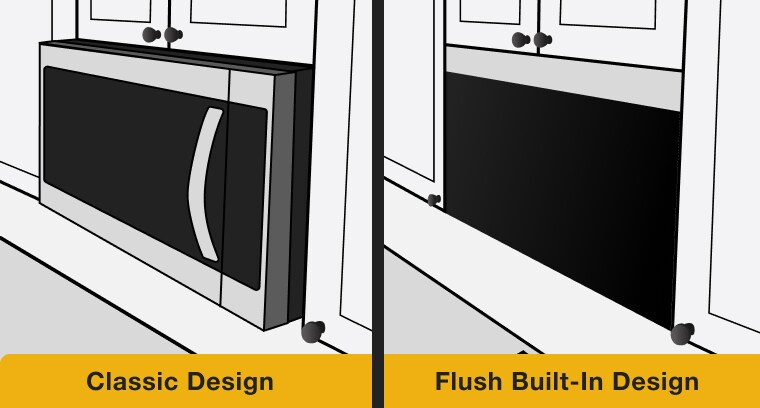

Split screen of a classic over-the-range microwave labeled Classic Design and a flush over-the-range microwave labeled Flush Built-In Design

Elevate your kitchen style with a microwave that sits flush with standard depth cabinets for a sleek, seamless look.

When installed in standard cabinet depth 12-3/4".

Ventilation Capabilities

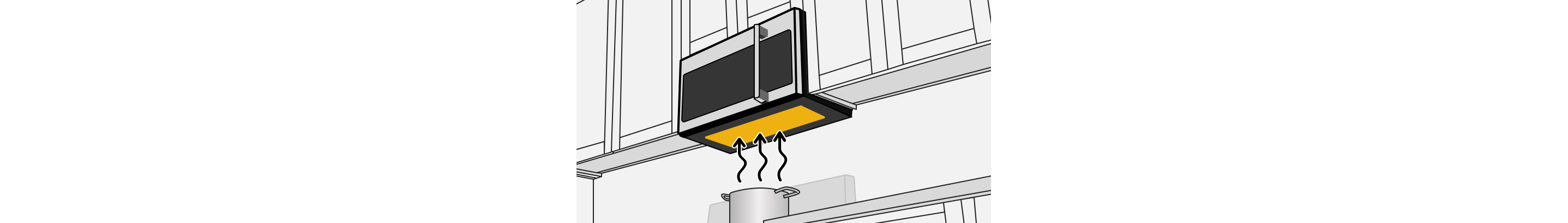

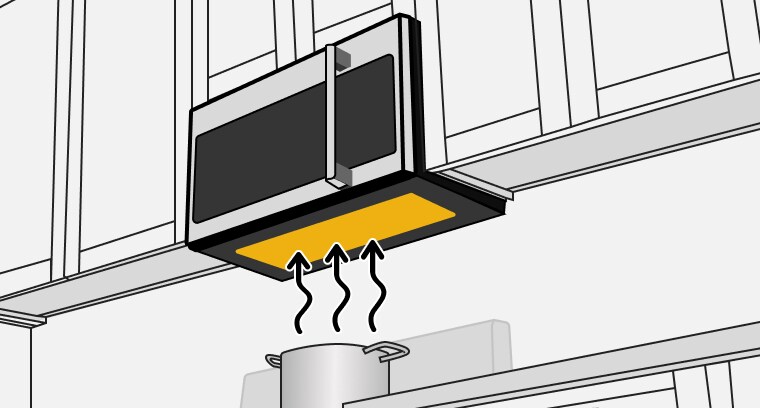

A flush built-in microwave with the fan area highlighted in yellow and arrows to indicate steam coming from a pot on the stovetop

Over-the-range microwaves provide cooktop ventilation that is measured by fan speed and the CFM motor class—the higher the CFM, the more powerful the ventilation. Most Whirlpool® Over-the-Range Microwaves range from 2–6 speeds and 280–400 CFM motor class.

Performance varies based on installation. Resources available at aham.org.

Power

Lighting bolt icon

Microwave power is measured in watts, with a higher wattage indicating a higher heating power. Most Whirlpool® Over-the-Range Microwaves range from 750–1,600 watts.

Air Fry Mode with Basket

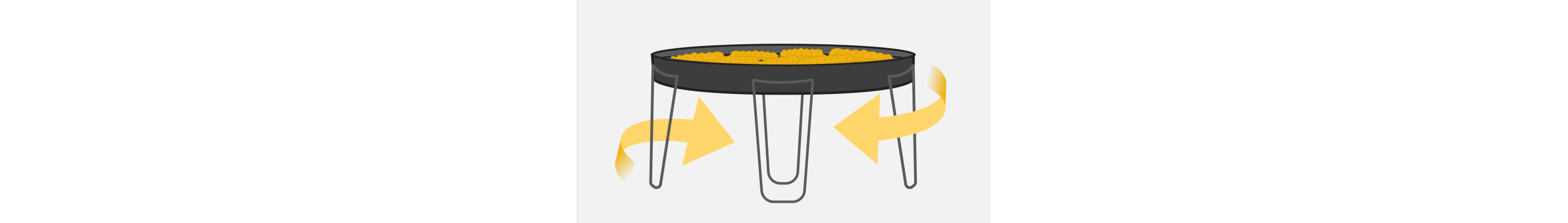

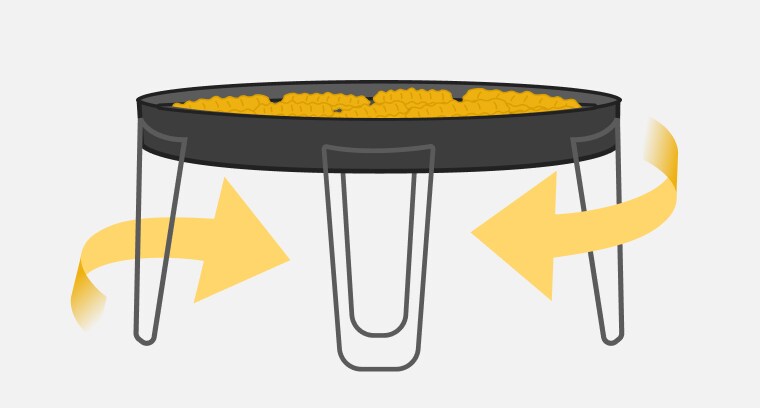

An Air Fry basket with fries and arrows indicating heat and air flow underneath

Get crispy results without countertop clutter for chicken nuggets, wings, fries and more using Air Fry Mode and the included Air Fry Basket in select Whirlpool® Over-the-Range Microwaves.

Grill Mode

Grill icon

Sear meat and vegetables in select Whirlpool® Over-the-Range Microwaves, using the Air Fry Basket to allow direct heat to create a nice crust on the outside of food.

Sensor Cooking

Sensor Cooking icon

Take out the guesswork with sensors that track the cooking progress of your food and automatically adjust cook times in select Whirlpool® Over-the-Range Microwaves.

Steam Cooking

Steam icon

Save cooktop space and steam foods like rice and vegetables in select Whirlpool® Over-the-Range Microwaves (steam accessory sold separately).

Convection

Convection icon

Convection cooking in the microwave uses a fan to circulate hot air, letting you use select Whirlpool® Over-the-Range Microwaves as a second oven for cookies, pizzas and more.

Cleaning Features

Steam Clean icon, CleanRelease® Non-Stick Interior icon and Stainless Steel Interior icon

Select Whirlpool® Over-the-Range Microwaves include these cleaning features:



Steam Clean—helps loosen and lift splatters with a bowl of water



CleanRelease® Non-Stick Interior—helps prevent spills from sticking



Stainless Steel Interior—provides a sleek look that’s easy to wipe clean

Display Color

Split screen of a blue digital display and a white digital display

Whirlpool® Over-the-Range Microwave displays show the time and settings selected and come in a variety of colors to seamlessly fit your kitchen’s style, including blue and white.

Door Release

Door release icon

Over-the-range microwaves can feature a traditional handle, a pocket handle or push button. On select Whirlpool brand models, a Tap-to-Open Door opens with the simple tap of a wrist or elbow.

Included Accessories

Box with plus sign icon

Select Whirlpool® Over-the-Range Microwaves come with cooking accessories, like a cooking rack, a convection rack and an Air Fry Basket to help you get the most out of your microwave. These items can also be purchased separately.

Turntable-Free Design

A line drawing of three microwaves side by side, labeled with Classic, Low Profile and Space-Saving

The Whirlpool® Flush Built-In Over-the-Range Microwave features a flat interior that’s easy to clean with just a damp cloth and has a hidden motor to circulate heating energy throughout the entire oven.

When installed in standard cabinet depth 12-3/4".

Turntable On/Off Option

Turntable On/Off Option icon

Some microwaves offer the option to turn off the turntable rotation, allowing you to accommodate a wide range of dish sizes.

Cooktop Lighting

Light bulb icon

Cooktop lighting is located underneath over-the-range microwaves to illuminate the cooking surface below and can also act as a night-light. Lighting can have adjustable levels and comes in incandescent, halogen and LED.

90º Hinge Door

Hinge icon

Install select over-the-range microwaves next to a wall if necessary with a 90º Hinge Door.
