6.0 Cu. Ft. Gas Double Oven Range with EZ-2-Lift™ Hinged Grates

WGG745S0FE

Temporarily out of stock

Bundle to Save

Color: Black Ice

Gift Wrap Available

(Select during checkout)

Premium kraft wrapping paper
Red-colored grosgrain ribbon
Custom message card

Compare

Free Delivery

to check availability in your area.

Estimating In-Home Delivery for ...

Earliest Estimated In-Home Delivery :

6.0 Cu. Ft. Gas Double Oven Range with EZ-2-Lift™ Hinged Grates

Model:

Product Description

6.0 Cu. Ft. Gas Double Oven Range with EZ-2-Lift™ Hinged Grates

Get dinner on the table quickly with this gas double oven kitchen range. True convection cooking lets you cook food faster. Convection Conversion will do the math for you to adjust cooking times and temperatures. Skip preheating this oven range for frozen favorites like pizza, lasagna, chicken nuggets, fries or pies, thanks to Frozen Bake™ technology. Large griddles and other longer cookware heat evenly on the range stove with the center oval burner. And if you make a mess, EZ-2-Lift™ hinged cast-iron grates provide quick access to wipe up spills on the kitchen range's cooktop.

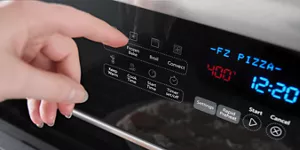

Frozen Bake™ Technology

Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

EZ-2-Lift™ Hinged Cast-Iron Grates

Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.

SpeedHeat™ Burner

Sear and boil quickly with the high temperatures provided by the 16,000-BTU SpeedHeat™ burner.

Center Oval Burner

The oval shape of this fifth burner fits large griddles and other longer cookware so they heat evenly on the range top.

Convection Conversion

Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.

Additional Features

True Convection with Third Heating Element

True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.

Temperature Sensor

A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.

Rapid Preheat (Lower Oven Only)

Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.

Steam Clean Option

Clean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.

6.0 Cu. Ft. Capacity

Certifications

ADA Compliant

No

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

UL

Yes

Exterior Details

Door Type

Metal & Glass

Handle Color

Stainless Steel

Handle Material

Metal

Knob Color

Color Coordinated

Knob Type

Weighted

Oven Control Location

Backguard

Oven Control Type

Electronic Touch

Oven Window Size

Extra Large

Cooktop Details

Cooktop Control Location

Front

Cooktop Control Type

Knobs

Cooktop Surface Color

Black on Stainless

Cooktop Surface Material

Porcelain Coated Steel

Griddle Included

N/A

Heating Element On Indicator Light

No

Hot Surface Indicator Light

No

Ignition Type

Electronic

Oven Cavity Details

Automatic Convection Conversion Temperature Adjust

Yes

Bake Element Power

16,000 BTU

Broiler Element Power

10,000 BTU-Upper

Broiler Location

Top of Oven

Convection Element Type

True

Door Removable

Yes

Hidden Bake Element

Yes

Interior Color

Grey

Lower Oven Capacity

3.9 cu. ft.

Number of Oven Lights

1

Number of Oven Racks

2

Number of Rack Guides

5

Oven Cleaning Type

Self-Cleaning

Oven Cooking System

Thermal Upper-Convection Lower

Oven Light Type

Incandescent

Oven Rack Type

Standard

Upper Oven Capacity

2.1 cu. ft.

Dimensions

Common Size

30 in

Cutout Depth

24 in

Cutout Height

36 in

Cutout Width

30-1/8 in

Depth Closed Excluding Handles

27-1/4 in

Depth With Door Open 90 Degree

46 in

Gross Weight

225 lbs

Height

47-1/8 in

Lower Oven Interior Width

25 in

Net Weight

0 lbs

Upper Oven Interior Depth

18-5/8 in

Upper Oven Interior Width

25 in

Width

29-15/16 in

Element/Burner Details

Center Rear Element-Burner Power

7,350 BTU

Center Rear Element-Burner Type

Oval Burner

Cooktop Element Style

Sealed Burner

Left Front Element-Burner Power

16,000 BTU

Left Rear Element-Burner Power

5,000 BTU

Number of Cooking Element-Burners

5

Number of Grates

2

Right Front Element-Burner Power

10,000 BTU

Right Rear Element-Burner Power

5,000 BTU

Right Rear Element-Burner Type

Simmer

Controls

Display Color

Blue, Red

Electronic Display Type

Digital

Grate Details

Dishwasher Safe, Hinged, Matte Finish, Porcelain Coated Cast Grates

Number of Grates

2

Details

Fuel Type

Gas

LP Convertible

Yes

Oven Automatic Shut-Off

No

Oven Configuration

Double Oven

Oven Selections

Audible Signal, Clock, Control Lock, Cook Time Indicator, Cook and Hold, Frozen Bake, Keep Warm Setting, Language Conversion, Melt, Rapid Preheat, Sabbath Mode, Timer, Warm Hold

Power On Indicator Light

No

Power Outage Compatible

No

Range Configuration

Double Oven

Range Type

Freestanding Double Oven

Electrical

Amps

15

Hz

60

Power Cord Included

No

Volts

120

Refinements

Features

EZ-2-Lift™ Hinged Grates, Frozen Bake™ Technology, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle

Features

Range Features

Bladed Knob, EZ-2-Lift™ Hinged Grates, Frozen Bake™ Technology, Self-Cleaning, True Convection, Whirlpool Handle
